Grundfos Circulation Pump 98333857 Stainless Steel, 32-60FN, 220 Mm, PN 6/10
Original price was: $356.00.$98.99Current price is: $98.99.
- Quality products, fair prices.
- Protect Your Information, Shop with Safe Payments
- Quality Meets Affordability
- Unbeatable Quality Guaranteed

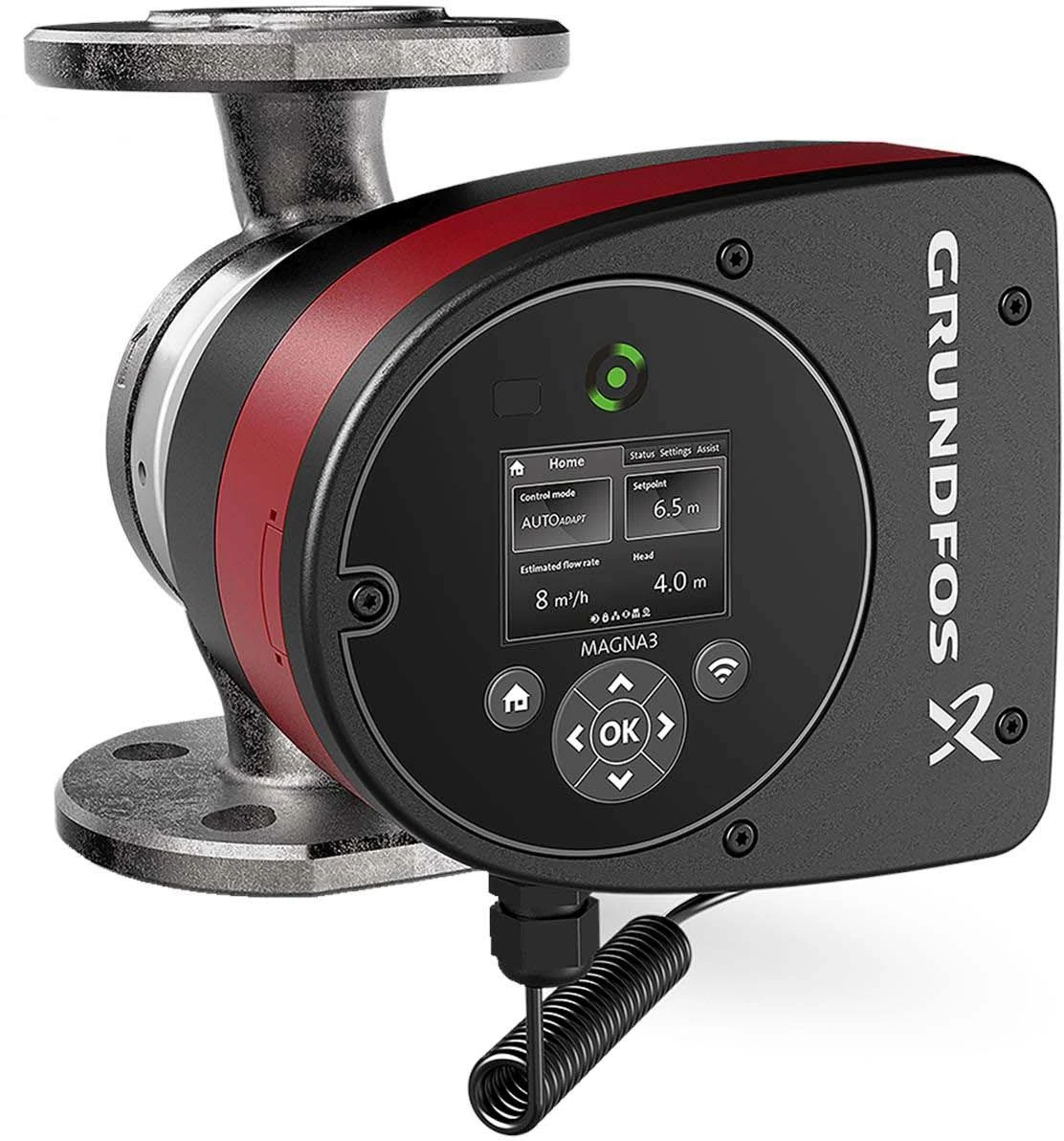

Grundfos circulation pump 98333857
- Stainless steel, 32-60FN, 220 mm, PN 6/10
| product class | circulating pump |
|---|---|
| connection size | DN 32 |
| Connection dimension pump housing | DN 32 |
| Supply voltage | 1 x 230 V. |
| Article compression stage | PN 10 |
| Flange pressure rating | PN 10 |
| installation length | 220 mm |
| Energy efficiency index (EEI) | 0.18 |
| model | 32-60FN |
| nominal diameter | DN 32 |
| IP protection) | IPX4 |
| series | MAGNA3 |
| Housing material | stainless steel |
| Impeller/impeller material | plastic |
| connection | flange |
| Motor power consumed (P1) | 103 W. |
| current | 0.91 A. |
| pumping height | 185 mm |
| Head at nominal volume flow | 46.77 kPa |
| Nominal flow | 4.71 m³ / h |
| Max. Head | 6 m |
| frequency | 50/60 Hz |
| Pump housing material | stainless steel |
| Material quality of the pump housing | Stainless steel 304 (1.4308) |
| Insulation class according to IEC | F |
| double pump | No |
| Nominal diameter connection inlet side | DN 32 |
| Max. Working pressure | 10 bar |
| number of phases | 1 |
| Outlet side connection | flange |
| Max. medium temperature (continuous operation) | 110ºC |
| Min. medium temperature (continuous operation) | -10℃ |
| Connection inlet side | flange |
