Xray SCX 1:10 2WD Short Course Truck – KIT

Presenting the XRAY SCX 2WD Short Course Truck!

The SCX is one of the most adjustable electric 2WD short course trucks in the world. Whether you are a hardcore racing enthusiast or a club-level sportsman, you can very easily adjust the SCX to suit your racing style, track type, and track conditions.

Made in Europe

Designed, developed, and fully manufactured in-house at the XRAY factory in Slovakia, Europe, using the most high-tech German and Swiss machines and premium European materials, crafted with XRAY’s legendary attention to detail by our artistic production specialists. The SCX is truly a masterpiece.

Perfection

XRAY’s dedicated staff produced the SCX using advanced German and Swiss CNC machines and premium European materials. Engineered and manufactured at the XRAY factory in Slovakia; the SCX is another example of the attention to detail the designers put into each of XRAY’s products.

SCX Concept

The SCX is distinctively XRAY – a premium, professional, high-competition R/C short course truck for the most demanding of racers; developed with attention to the smallest details and backed by leading service & support…a luxury masterpiece.

Team

Successful development of the SCX – like all other XRAY platforms – would not be possible without the entire racing team’s involvement working year-round to test new ideas, prototypes, and improvements. The racing team participates at events all around the world and provides XRAY drivers with first-class support & service; benefits of being a part of the XRAY team.

Heritage

XRAY’s commitment to craftsmanship, durability and performance is unsurpassed. Be part of the family, live the heritage.

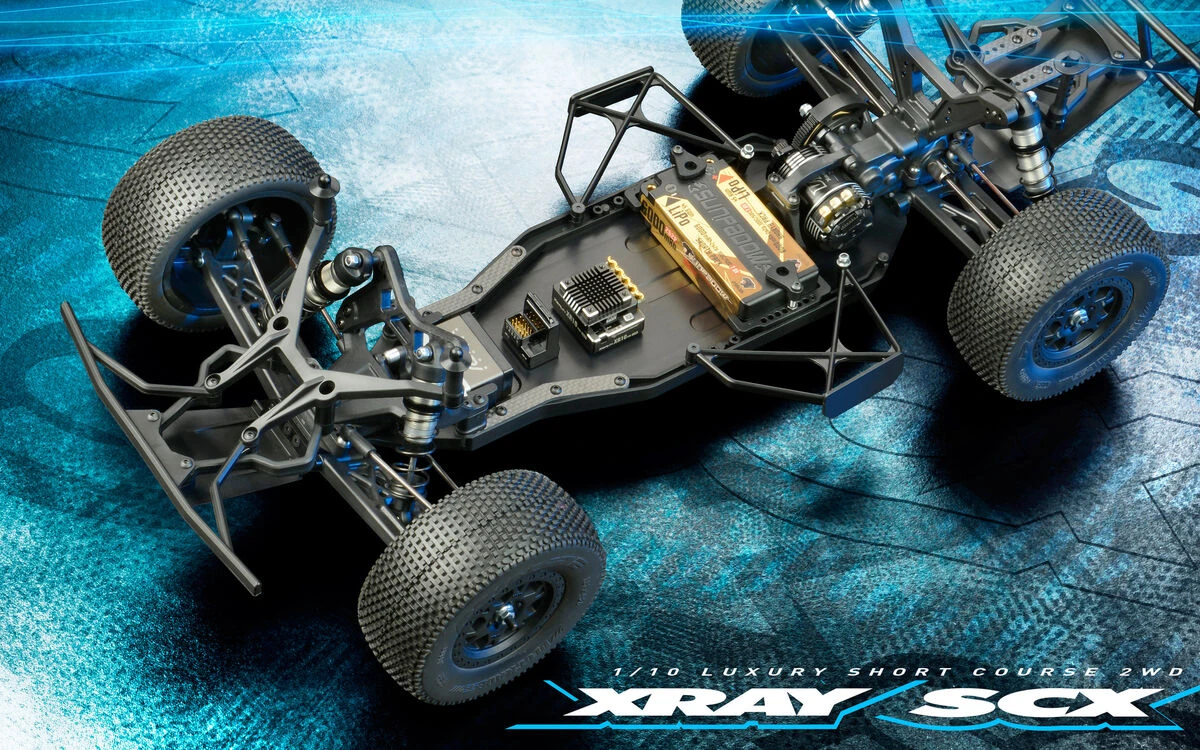

Chassis

CNC-machined from high-quality 2.5mm Swiss 7075 T6 aluminum, the lightweight chassis retains the necessary strength and rigidity for the longer wheelbase SCX and is black coated at XRAY’s own in-house fully robotic coating line. After extensive testing of different chassis designs, the final concept was selected for its flex characteristics and layout to produce the best balance of traction and stability.

• The chassis features bent sides for improved stiffness, and increased traction with maximum stability for the truck.

Side Guards

Side guards integrate with the chassis and incorporate the adjustable battery holder system.

Side Guard Braces

Graphite side guard braces make the front of the car more stable and more predictable. The multiple mounting positions create three possible flex settings.

• Soft setting – more aggressive front of the car
• Medium setting – setting in between
• Stiff setting – more precise handling of the car

Rear Bumper

The SCX rear bumper assembly protects the truck from impacts with other vehicles during the close quarters racing common in Short Course events, and also contributes to the scale appearance that makes the class popular.

Front Bumper

Just like the rear assembly, the front bumper and body mount provide protection in the case of a serious crash while maintaining the scale appearance.

Side Bumper Braces

The side bumper braces provide support to the body in case of an impact and protect the chassis. Velcro™ tape can be applied to the braces and the body to provide some additional security when mounting the body.

Battery Holder

The tweak-free fully adjustable battery holder is integrated into the side guards allowing quick and easy battery position adjustments, as well as simple battery installation through the smart quick-release system.

• The battery pack can be moved front/rear to adjust the balance of the car. When the rear motor brace is removed, the battery pack can be moved completely rearward to maximize the rear weight bias and generate extra traction for the rear suspension.
• The height of the battery backstop is also adjustable for different battery dimensions.
• The battery holders are mounted to the chassis through one connecting screw on each side brace to eliminate any negative effects on chassis flex.

Gear Box

The LCG tramsission uses a super-narrow, ultra-low CG gear box with quick & easy diff access. The narrow design of the LCG gear box reduces weight and moves all parts closer to the chassis centerline. The included gear box layout moves the weight of the motor forward to place more weight over the front axle for improved steering and corner speed on high grip surfaces.

Easy Diff Access

The SCX gear box features easy access to the differential for quick setup changes or maintenance.

All parts fit together perfectly, and the super-easy access to the rear differential will be appreciated by every racer. The durable gear box houses the differential and transmission components and serves as the mounting point for the rear roll center holder, motor plate, and rear shock tower.

Motor Mount Brace

The motor mount brace ensures optimum flex via a pivot ball mount that allows some side flex for increased traction.

The design of the SCX layout also allows removal of the motor mount brace to increase flex and to move the battery pack further to the rear for more weight over the rear axles to improve rear traction.

Gear Differential

The LCG differential has greater internal oil volume to increase consistency of the diff action, yet at the same time it is narrow to fit into the LCG gear box and to move the rotating weight closer to the centerline.

The super-smooth gear diff includes a composite case and cover with internal satellite gears that are precision-molded from special XRAY-developed graphite composite material, ensuring a long lifespan and super-smooth, efficient operation.

Ball Differential (Option only)

The externally adjustable ball differential is machined from HUDY Spring Steel™ and is additionally hardened for extra durability and long lifespan. A high-quality carbide thrustbearing and carbide balls are included for ultra-smooth operation. The outdrive adapters are designed for use with 2.5mm pin drive shafts. The ball differential comes factory pre-assembled.

The ball differential will perform well on many different dirt and clay tracks and for bumpy Astro tracks.

Slipper Clutch

Power from the motor is transferred to the drivetrain via an externally adjustable slipper clutch for quick & easy tuning. The 3-pad slipper clutch ensures super-smooth clutch operation and efficient and consistent braking. It is extremely easy to make ultra-fine adjustments to the clutch externally.

The slipper clutch pads are made from ultra-efficient SLS material with very high slip efficiency, allowing for very precise slip adjustment.

The lightweight slipper plates are machined from premium Swiss 7075 T6 and additionally hardened before a final black surface treatment. The plates have a machined relief which decreases the friction surface to assist with clutch slip adjustment. With this plate design, pressure is focused on the circumference of the clutch pads for increased efficiency.

Motor Plate

The super lightweight motor mount is machined from Swiss 7075 T6 aluminum and is designed to fit the LCG gear box design and spur gear protector.

The molded composite gear protector prevents contact between the spur gear and the body. Moulded from strong, lightweight material, the cover helps to protect the body shell and spur gear.

Steering System

The dual-arm steering system is simple and effective. The steering system is fully bearing-equipped with 8 high-speed ball-bearings for very precise steering. The Ackermann is easily adjusted by changing the steering link mounting positions on the steering plate.

• Bump steer is can be adjusted for more aggression by inserting a shim between the steering block and steering linkage.
• Ackermann is also tunable by inserting a shim on the steering plate or by changing various graphite extension plates on the steering blocks.

Roll Center Holder

Both front & rear suspensions feature adjustable suspension holders with multiple roll center positions. The roll center holder is designed to fit the LCG gear box and serves as the rear anti-roll bar mount.

An optional rear aluminum roll center holder features roll center positions in between the stock positions for additional tuning choices.

Drive Shafts

SCX constant velocity drives are manufactured from world-renowned HUDY Spring Steel™. The drive shafts are some of the world‘s thinnest yet most durable drive shafts used.

Hardened with a proprietary hardening process, the drive shafts provide unbeatable lifespan and reliability.

Rear Uprights

The rear uprights feature aluminum roll center mounts with adjustable roll center positions The upper roll center is adjusted at the camber link via shims (up/down & in/out), while the lower roll center is adjustable via eccentric inserts for 9 different positions (up/down & in/out). The multi-function uprights have the upper roll center position in the middle of the axis of the driveshaft joint to help generate more traction and increase stability.

• There are three different uprights available: hard (included), graphite (optional), and aluminum (optional), each suitable for different conditions.

Shock Towers

Front and rear shock towers are molded from strong composite materials and include multiple upper shock positions.

Suspension Holders

The aluminum suspension holders feature the Integrated Suspension Settings (I.S.S.™) which allows for quick & easy suspension geometry set-up.

Using eccentric bushings that are inserted into the Swiss 7075 T6 aluminum suspension blocks, as well as additional shims and turnbuckles, the SCX suspension geometry is completely adjustable:

• camber
• toe-in
• rear roll-center
• anti-squat
• track-width

Suspension Arms

The suspension arms are the result of long-term testing of different designs and layouts. Length, thickness, flexibility, geometry, and materials used… these are all part of the concepts and details that are thoroughly reviewed to create optimum suspension arms.

The suspension arm itself is rigid enough to provide a responsive feel, yet soft enough for durability. The exclusive composite mixtures used for suspension arms are a perfect balance between reliability and performance.

• There are three different suspension arms available: medium (included), hard (optional), and graphite (optional), each suitable for certain conditions.

Wheel Hubs

The SCX comes equipped with offset hexes to perfectly match the width of the car.

Ultra-lightweight 12mm wheel hex-drive hubs are CNC-machined from Swiss 7075 T6 black-coated aluminum. These ultra-true hex hubs have a clamping design to ensure ultra-solid mounting of the wheel’s hub.

To adjust track-width, optional offset wheel hex-drive hubs are available.

Steering Blocks

The tiny yet tough steering blocks are comprised of composite steering blocks and graphite Ackermann extensions for variable Ackermann positions.

The blocks are molded from a special composite mixture for maximum strength.

• There are three different steering blocks available for various track conditions: medium (includedl), hard (optional) and graphite (optional.)

Caster Blocks

The caster blocks are very lightweight, yet their construction makes them very stiff & rigid. Caster can be adjusted with values 0°, 2.5°, or 5° using included caster bushings.

• There are two different caster blocks available: medium (included) and hard (option), each suitable for different track conditions.

Chassis Brace

The front lower chassis brace is another component of the Multi-Flex™ system that influences flex and handling. There are two different chassis braces available – medium (optional) and hard (included), each suitable for particular track conditions. The brace is mounted directly to the chassis to hold the entire front assembly and front suspension, including the front protection bumper.

• An optional medium-hardness composite molded brace is suitable for low- and medium-traction tracks.
• The included brace is moulded from hard-hardness composite and is suitable for high- and very-high-traction tracks.

Front Lower Arm Mount

The lower composite arm mount is an important part of the chassis where the lower arms mount, and the block has an integrated 26° kick-up angle. Optional aluminum and brass arm mounts are available to alter kickup geometry and for additional weight balance adjustment.

Upper Deck

As a part of the Multi-Flex™ system, the front upper deck is used to adjust chassis flex.

There are two different upper decks available – medium (optional) and hard (included), each suitable for particular track conditions.

An optional medium-hardness composite upper deck is great for low-and medium-traction conditions.

The included brace is moulded from hard-hardness composite and is suitable for high-traction and very-high traction conditions.

Shocks

Well-built, reliable shock absorbers are extremely important for super-smooth suspension action on any type of track. The shocks on the SCX have been specifically designed to be built easily, perform consistently, and last reliably. Careful attention was paid to the smallest details during the design process, as well as during long-term testing in various conditions.

The shocks are membrane-free, yet they still allow for easy, consistent building and rebound setting using the bleed-screw shock cap design.

Downstop is adjusted using composite shims under the pistons. Upstop travel is adjusted using composite shims under the shock collar.

The aluminum body, lower nut, and bleeder shock caps are all machined from premium Swiss 7075 T6.

Shock shafts are machined from special steel material, precision hand-ground for maximum smooth operation, and additionally hardened for improved lifespan.

Shock Pistons

Shock pistons are made from Delrin® and are formed using ultra-high precision moulds. The 2-hole pistons (1.6mm and 1.7mm holes) are included in the kit.

Shock Springs

The SCX springs, like all other XRAY springs, are manually measured, selected, and matched into pairs to guarantee precisely equal length and damping characteristics.

Spur Gear

Precision-molded spur gears are made from XRAY’s exclusive secret blend of composite material, allowing the gear to run true yet be robust enough to handle high-performance brushless motors. The spur gears are designed to have the lowest possible weight while staying strong and light. Each gear is stamped with the tooth number for easy identification.

• The SCX is equipped with an 78T spur gear that suits the majority of tracks. For additional tuning, optional 75T and 81T spur gears are available.

Ball-Bearings

The SCX features greased ball-bearings for the front steering blocks & rear uprights to increase lifespan in dusty conditions. The remaining bearings are degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and longer life.

A full set of 22 high-speed ball-bearings are used throughout the drivetrain to ensure maximum efficiency.

Wheelbase & Weight Balance Adjustment

Outer suspension pins holding the front caster block and rear uprights feature wheelbase shims for quick & easy wheelbase and weight balance adjustment. Using the included shims, both front and rear blocks can be moved forward or rearward to adjust weight balance depending on track condition.

• By moving the arms to the front, the balance & weight of the car are transferred more to the rear; recommended for medium- and high-traction conditions.
• By moving the arms to the rear, the balance & weight of the car shift forward.

Turnbuckles

For maximum reliability, all turnbuckles feature a tougher core from special HUDY Spring Steel™ material. These turnbuckles are used for front & rear upright linkages and steering system.

Body Mounts

Beefy 6mm thick body posts are made from special composite material that provides maximum strength but sufficient flex to reduce body post breakage in hard crashes or if the car flips over. The body supports are rounded to have a better fit and provide better support to the car body.

Rear graphite body holder allows movement of the rear body posts to match various body designs for easier mounting.

• For additional tuning and adjustment, XRAY offers optional body height adjustable body posts for independent front & rear body height adjustment by +1mm or +2mm.

Adjustment Possibilities

The SCX’s extensive range of adjustment possibilities include: caster, camber, toe, kick-up, anti-squat, ride height, downstops, track-width, lower roll center, upper roll center, roll center position, bump steer, wheelbase, Ackermann, adjustable shocks, adjustable rear diff, adjustable slipper clutch, and adjustable XRAY Multi-Flex™.

Chassis Balance

Chassis design focuses on balanced weight distribution and weight transfer. The chassis features pre-drilled holes for additional balance weights. Centerline holes are pre-drilled for easy balancing with the HUDY Chassis Balancing Tool #107880.

XRAY VIP Customer Treatment

Owning an XRAY model racing car is an experience all of its own. Not only will you own the most premium luxury model racing car in the world, but you will also become a member of the prestigious family of XRAY owners with direct support and service from the XRAY factory. XRAY brings you the most up-to-date RC Web site on the Internet, with daily racing news and the latest product developments.

If you have any questions, problems or comments, you can ask the XRAY Support Team or any XRAY Factory Team Driver on the XRAY Support Forum. You can even upload your own set-up sheets or download from the thousands of different set-up sheets available from all around the world at the exclusive XRAY Virtual Set-up Sheet Database, the world’s largest set-up sheet database. And that is only the start of the VIP treatment you get by joining Team XRAY.
