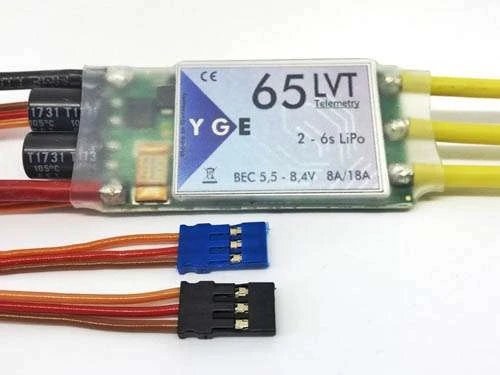

YGE 65LVT Brushless ESC 65A With Telemetry 2-6S

“T” for Telemetry

Supported telemetry-protocols:

– Graupner HoTT V4
– Jeti ExBUS
– Multiplex Sensor BUS V2
– Mikado Vbar Control
– MSH Brain 2
– Spirit FBL
– YGE-protocol for different telemetry-connections for example via YGE TexY (Futaba, Spektrum, FrSky)

more protocols coming soon…



All usual informations as current, voltage, capacity, RPM, temperature etc. will be transferred to your transmitter. The amount of data and the characterisation depends on your transmitter/receiver.



Technical Specifications:

– Update capable (optional USB-Adapter available)

– entirely overhauled hard- und software (32-bit)

– the PWM-frequency will be set automatically to the requirements of the motor

– Current-limitation

– 2 to 6S LiPo

– super smooth sinus-startup

– adjustable HV-BEC from 5,5 to 9V

– high BEC-current rating: 8A permanent / 18A peak

– dimensions in mm: 64 x 26 x 9

– weight with / without cables: 30g / 45g

– basic settings via mode-setup

– BEC- and Telemetry-settings, as well as additional parameters adjustable via PC-Software (optional USB-adapter available)



suitable for T-Rex 450/470, OXY3
